Q&A OF THE MONTH
cap_var vs. cap_sw

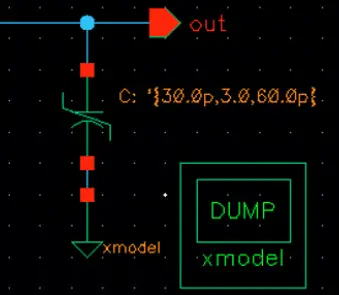

Learn the difference between two capacitor primitives: 'cap_var' and 'cap_sw'.
July 2020
TIP OF THE MONTH
Mapping global nets as UDM ports

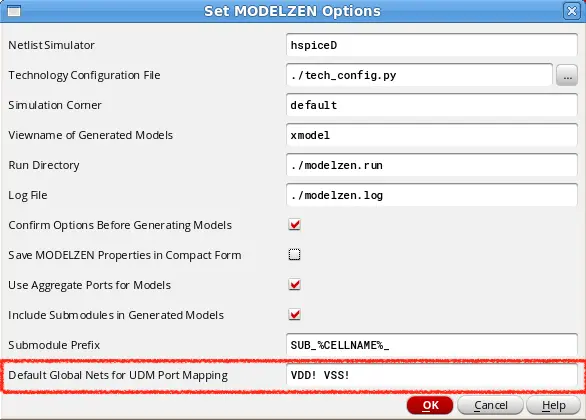

Here is a simple tip to make the global nets used in the lower-hierarchy cells visible in the UDM port mapping list.
PRIMITIVE OF THE MONTH
scale_var
This primitive is like the 'scale' primitive, but has an additional real-type input that sets a variable scale factor.
XMODEL RELEASE UPDATES
2020.07 Release
This release extends the connector primitives to support 'x' and 'z' values more naturally, for example, holding the analog output at its current value when the digital input becomes an 'x' or 'z'.
