Tip of the Month

Generating a sinusoidal signal with resettable phase

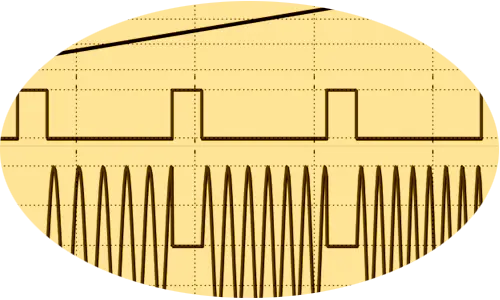

How do you generate a sinusoidal signal, of which phase can be reset by an external input? A 'sin_gen' primitive followed by a 'switch' primitive won't do it.

Model of the Month

Modeling a gated ring oscillator with multiple output phases & arbitrary output waveforms

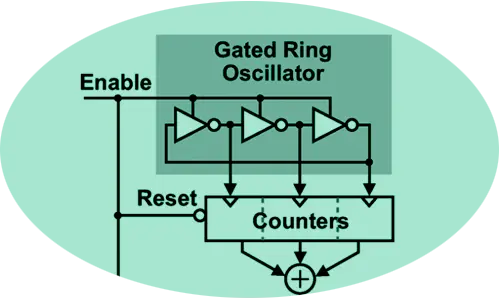

Here is a model of the gated ring oscillator (GRO) presented in the paper "A Multi-Path Gated Ring Oscillator TDC With First-Order Noise Shaping" by M. Z. Straayer and M. H. Perrott.

Primitive of the Month

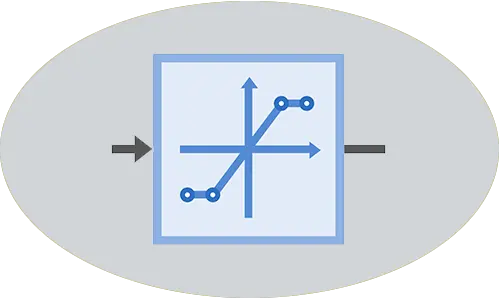

pwl_func

This primitive defines a piecewise-linear (PWL) function from an xreal-type input to an xreal-type output.
